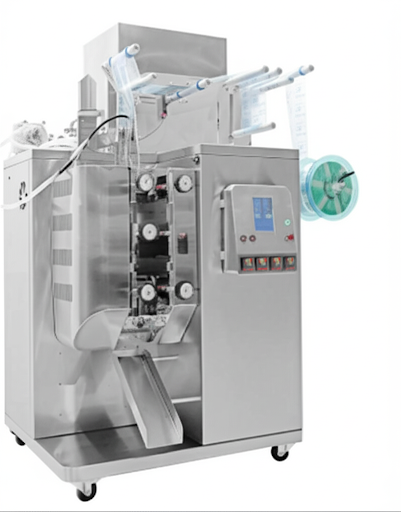

SD-186X CONTINUOUS HIGH SPEED SAUCE PACKAGING MACHINE

SD-186X CONTINUOUS HIGH SPEED SAUCE PACKAGING MACHINE

It is suitable for measuring and packaging of food, cosmetic powder, liquid, sauce and other items (see page 97-98 for details, optional small machine downfeed structure);

It can automatically complete the bag making, measuring, discharging, sealing, slitting, counting, and can be configured to print the batch number and other functions according to the customer's requirements;

Touch screen operation, PLC control, servo motor control bag length, stable performance, easy adjustment, accurate detection; intelligent temperature controller, PID adjustment, to ensure that the temperature error control within 1°C;

Packaging material
PET/AL/PE,PET/PE, etc;

Sealing method
four-side sealing.


Parameter

Packaging range 1-60g
Bag length 35-100mm
Bag width 60-160mm
Packaging speed 20-120bags/min
Power voltage 220V, 50HZ/60HZ
Power 5KW
Dimension L1500*W500*H1900mm
Weight ≈450kg
