Ultrasonic non-woven packaging machine SD-62

Ultrasonic non-woven packaging machine SD-62

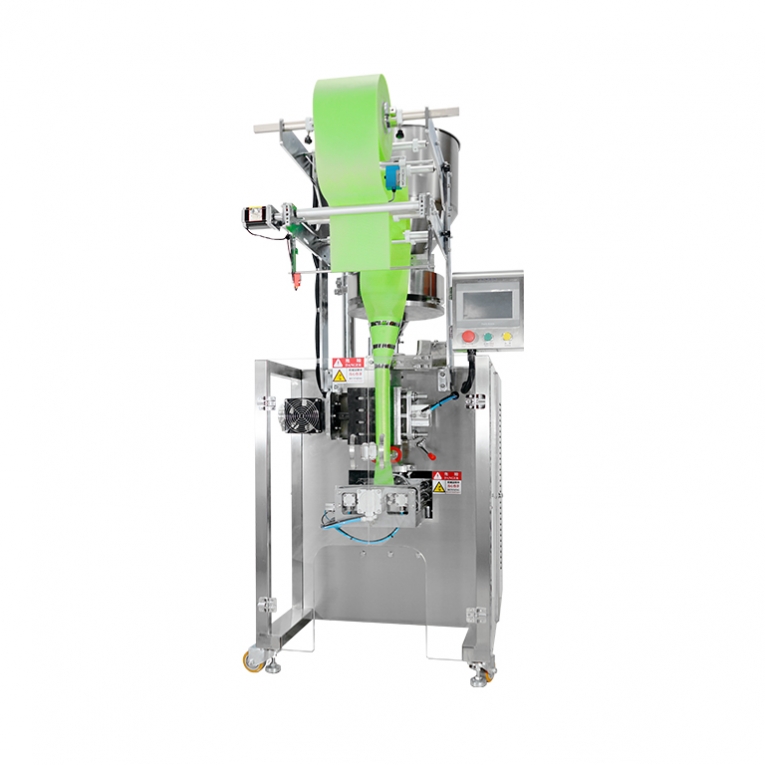

This is SD-62 Ultrasonic Non-woven Packing Machine

Suitable for food, medicine, chemicals, cosmetics powder industry, particle measuring and packaging;

Can automatically complete bag making, measuring, cutting, cutting, sealing, cutting, counting, and can be set according to customer's requirements to print batch number and other functions;

Touch screen operation, PLC control, stepper motor drive bag length control, stable performance, easy adjustment, accurate detection. Intelligent temperature controller, PID adjustment, ensure that the temperature error range is controlled within 1?;

Packaging material
non-woven fabric;

Sealing method
three side sealing, back sealing.


Parameter

Model SD-62
 Packaging range  1~100g
Bag length 30~170mm
Bag width 30~130mm
Packaging speed 10~60bags/min
Power voltage 220V,50HZ/60HZ
 Power 3KW
Dimension L850*W1100*H1900mm
Weight ≈300kg
